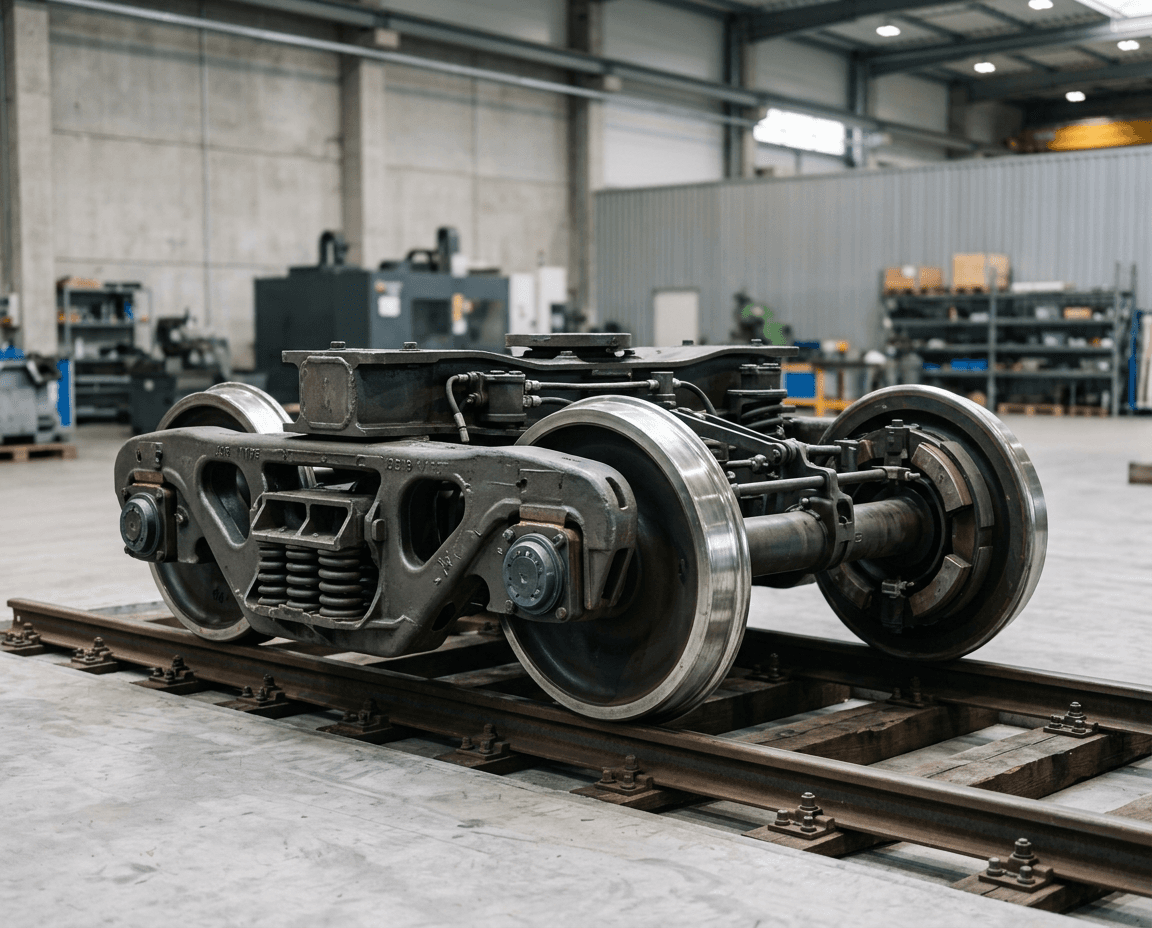

转向架
多型号货车/客车转向架，适配多轨距
转向架
多型号货车/客车转向架，适配多轨距
技术参数
| Types | Freight / Passenger bogies |
| Gauge Range | 1000mm ~ 1676mm |
| Axle Load Range | 16t ~ 30t |
| Speed Range | 70 ~ 120 km/h |
认证标准
AAR M-101AAR M-107/M-208UICENTB/T
产品描述
转向架是铁路车辆最核心的走行装置。我司提供多种型号的货车与客车转向架产品，涵盖铸钢三片式转向架等多种结构类型，适配1435mm标准轨距、1000mm米轨、1067mm窄轨、1676mm宽轨等多种轨距系统。每款转向架均经过严格的设计验证与质量检测。
产品特性
- 提供RTHZ31、RTHZ03、RTHZ08、RTHZ27等多种型号
- 适配1435mm、1000mm、1067mm、1676mm等多种轨距
- 轴重覆盖16t至30t，满足轻载至重载各类需求
- 最大运行速度70-120km/h
- 主要组件包括轮对、侧梁、支梁、制动连杆、弹簧悬挂系统等
Models
| Model | Gauge | Axle Load | Speed | Diameter | Wheelbase | Weight |
|---|---|---|---|---|---|---|
| RTHZ31 | 1435mm | 30t | 70km/h | 1000mm | 1800mm | 5.2t |
| RTHZ03 | 1435mm | 17t | 120km/h | 840mm | 1750mm | ≤4.0t |
| RTHZ08 | 1000mm | 16t | 80km/h | 724mm | 1550mm | ≤2.6t |
| RTHZ11 | 1676mm | 25t | 80km/h | 840mm | 2032mm | ≤4.7t |
| RTHZ27 | 1000mm | 20t | 80km/h | 762mm | 1600mm | ≤3.3t |
| RTHZ07 | 1067mm | 18.5t | 100km/h | 863mm | 1753mm | ≤3.5t |
| RTHZ24 | 1000mm | 20t | 80km/h | 800mm | 1727.2mm | ≤3.4t |
| Y25Lsd1-k | 1435mm | 22.5t | 120km/h | 920mm | 1800mm | ≤4.7t |
| RTHZ22 | 1000mm | 20t | 100km/h | 920mm | 1750mm | ≤4.1t |
RTHZ31
Gauge1435mm
Axle Load30t
Speed70km/h
Diameter1000mm
Wheelbase1800mm
Weight5.2t
RTHZ03
Gauge1435mm
Axle Load17t
Speed120km/h
Diameter840mm
Wheelbase1750mm
Weight≤4.0t
RTHZ08
Gauge1000mm
Axle Load16t
Speed80km/h
Diameter724mm
Wheelbase1550mm
Weight≤2.6t
RTHZ11
Gauge1676mm
Axle Load25t
Speed80km/h
Diameter840mm
Wheelbase2032mm
Weight≤4.7t
RTHZ27
Gauge1000mm
Axle Load20t
Speed80km/h
Diameter762mm
Wheelbase1600mm
Weight≤3.3t
RTHZ07
Gauge1067mm
Axle Load18.5t
Speed100km/h
Diameter863mm
Wheelbase1753mm
Weight≤3.5t
RTHZ24
Gauge1000mm
Axle Load20t
Speed80km/h
Diameter800mm
Wheelbase1727.2mm
Weight≤3.4t
Y25Lsd1-k
Gauge1435mm
Axle Load22.5t
Speed120km/h
Diameter920mm
Wheelbase1800mm
Weight≤4.7t
RTHZ22
Gauge1000mm
Axle Load20t
Speed100km/h
Diameter920mm
Wheelbase1750mm
Weight≤4.1t
应用场景
适用于新制造和既有货车、客车的走行系统配套与维修更换，可满足不同国家和地区的轨距要求与运营工况。
